Getting Started with FoSpy

Software

(Required) Python

A stable runtime of Python >= 3.11 is required to run FoSpy. Since many scientists have off-market versions of Python packaged with programs like GSAS-II or Anaconda, it is recommended to start with a fresh runtime of Python using the new Python install manager. The install manager also has commands for checking current installed runtimes.

(Optional) Git

Git is only required if you want access to incoming features that have not yet been published to PyPI.

Git is the version-control system used by GitHub for downloading and tracking files. Having Git installed allows installation of the most recent development build directly from the GitHub instead of the pre-built versions on PyPI.

Virtual Environments

A virtual environment is a simple way of making sure that Python packages installed for various projects do not interfere with each others' source code. Virtual environments rely on the base Python compiler, but any packages installed to a virtual environment are only accessible when that environment is "activated". Here, I'm creating a virtual environment in a folder titled .venv_FoSpy:

Note: The first time the FoSpy GUI is opened in a python environment containing unexpected packages, it will automatically prompt you to set up its own virtual environment in a folder of your choosing.

python -m venv .venv_FoSpy

python3 -m venv .venv_FoSpy

Installing FoSpy

Stable Releases

FoSpy is published as a PyPI project, meaning that it can be downloaded and installed directly by Python's pip module.

Note: - The activation of the new virtual environment before the installation command makes sure that FoSpy will not interfere with other packages on the base python install. - Including [app] in the install command ensures that all the extra packages required for the GUI are also installed.

.venv_FoSpy\Scripts\activate
python -m pip install --upgrade FoSpy[app]

call .venv_FoSpy/bin/activate
python3 -m pip install --upgrade FoSpy[app]

Unstable GitHub Builds

If Git is installed, you can point pip to the GitHub URL to get the most recent incoming features.

.venv_FoSpy\Scripts\activate
python -m pip install --upgrade "FoSpy[app] @ git+https://github.com/errthumt/FoSpy.git@main"

source .venv_FoSpy/bin/activate
python3 -m pip install --upgrade "FoSpy[app] @ git+https://github.com/errthumt/FoSpy.git@main"

Opening the App for the First Time.

Once installed, the fospy-app command is available inside your activated environment to launch the FoSpy GUI

.venv_FoSpy\Scripts\activate
fospy-app

source .venv_FoSpy/bin/activate
fospy-app

Setting Up for Future Use

FoS-style Editor Registration

You can register the GUI as an editor for recognized FoS extensions (*.fos, *.fosx, *.json). This allows the app to show up as as an option in "Open With..." context menus.

editor registration menu

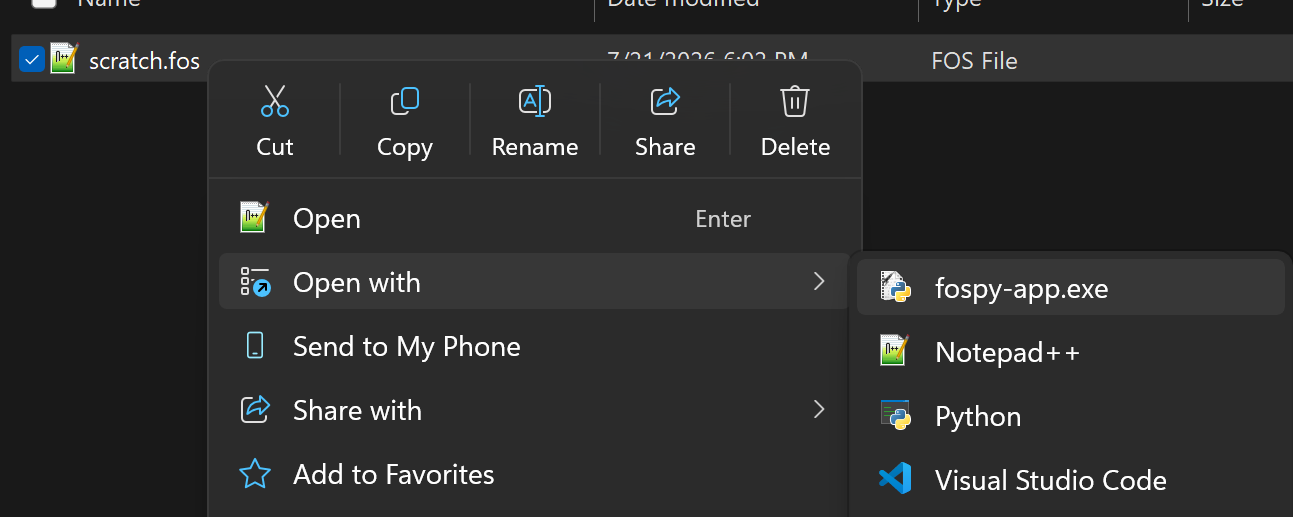

open with dialog

Windows Start Menu

Windows users can also add the GUI as a Start shortcut so that it will show up in the search menu.

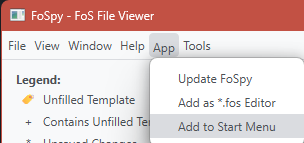

add to start menu

start menu
